Full-House Sailplane Wiring Diagram

Full-House Sailplane Wiring Diagram

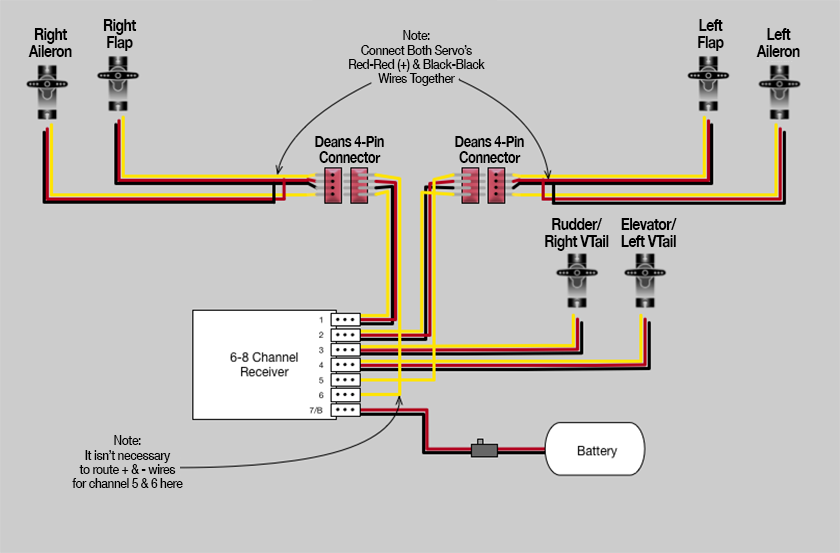

A simplified diagram illustrating how to utilize a 4-Pin Deans-style connector for connecting two servos in the wing of a sailplane with separate ailerons and flaps.
Wiring Diagram
Attach the Deans 4-Pin connector at the root of where the wings attach to fuselage. This way when you put the wings on, your connections to the servos will be all setup and ready-to-fly!
