Air Pressure

Two different experiments to show air pressure at work.

Materials

  • Newspaper
  • 'ACE' hardware yardstick (1/8" thick)
  • A flat table
  • Kite string
  • Plastic or paper straws
  • Some balloons
  • Cellophane or masking tape

Procedure

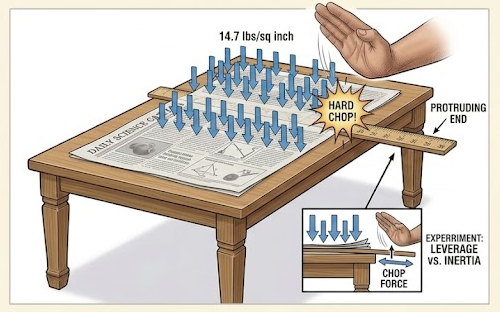

First we'll show that there is air pressure pushing on us, from every direction while we're on this Earth. Place a thin yardstick on a flat table with a little less than half of it hanging off of the edge of the table (see the drawing below). Place a sheet of newspaper over the yardstick flat against the table (have as little air as possible under the paper) so that the fold line of the newspaper is at the yardstick. Quickly strike the end of the yardstick hanging off the edge of the table. If you strike it quick enough, the yardstick will break near the table edge.

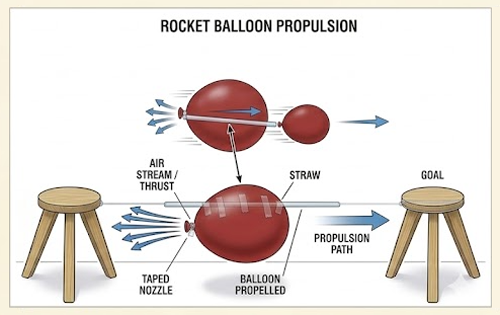

Now, we're going to make a balloon 'rocket' that shoots along a kite string. Cut a plastic straw in half and tie a length of string (at least 20 feet long is more fun) between two chairs or something. Before you tie the second knot in

the string, slip the straw on to the string. Try to get the string fairly tight (the two chairs work well because you can pull the chairs apart to get the string tight). Blow up a balloon, but don't tie off the end and tape it to the straw so that it resembles the drawing below. Let go of the balloon and the 'rocket' should shoot along the string (very quickly) towards the other chair. Try different kind of balloons!

What's Going On?

The Earth is covered in a layer of air that is nearly 80 miles thick and at sea level (the bottom) exerts or 'pushes' almost 15 pounds of pressure per square inch. That means that a full sheet of newspaper laid out flat has nearly 9,300 pounds of air above it. When you break the yardstick above, you are able to break it because of that 'heavy' air pushing down on the paper while you quickly strike the yardstick. Initially, the table is pushing back on the paper, and if you move the yardstick quick enough, other air around the edges of the paper can't get under the paper fast enough, so you are trying to lift that 9,300 pounds with the yardstick! Some air gets under the paper, but not enough, so the yardstick breaks.

The 'Balloon Rocket' illustrates a way to use air pressure to move something. When you blow up a balloon you can 'see' air pressure as the balloon increases in size and the experiment shows exactly what happens when that pressure is released!

Mess Factor

Not much mess, but you need to be careful not to use too thick of a yardstick, it should be about 1/8 of an inch thick, but not more. Also, don't have a friend stand right above the yardstick when striking it as the yardstick or a piece of it could hit them in the face.

Things to Remember

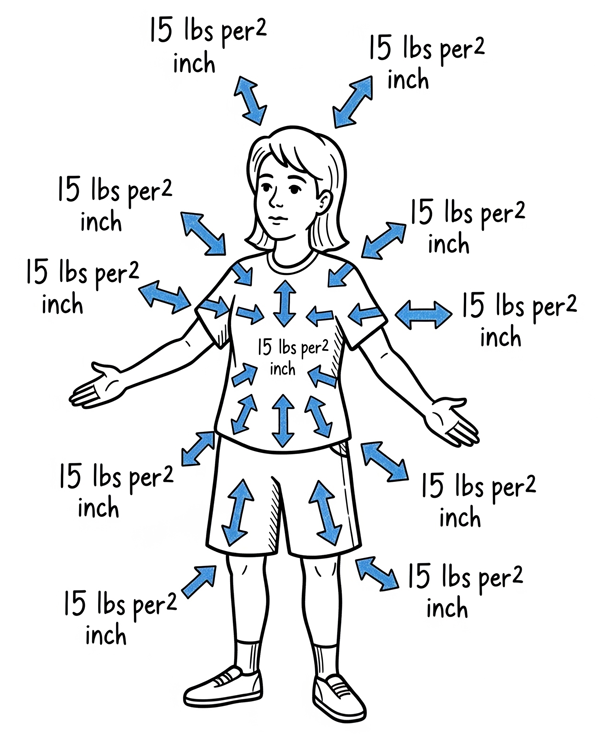

That there is this tremendous pressure of the weight of the air pushing on us every moment of every day. The only reason we don't get crushed is that our bodies push back at the air with the same pressure.

...CLEVER ILLUSTRATION OF AIR PRESSURE PUSHING ON OUR BODIES GOES HERE...
